Iseden DG19E VFD Tube
Written by AnubisTTP on 2007-05-14

Description

The DG19E is a large, attractive VFD with a curved top and shaped flying leads. Digit height is 15mm and the envelope is 41mm long. The display has a control grid and an eighth segment, allowing the tube to display a plus sign and many alphanumeric characters in addition to conventional seven segment numbers. The example shown here has clipped leads... a factor new DG19E would typically have leads several inches long.

More

Itron DG19E VFD Tube

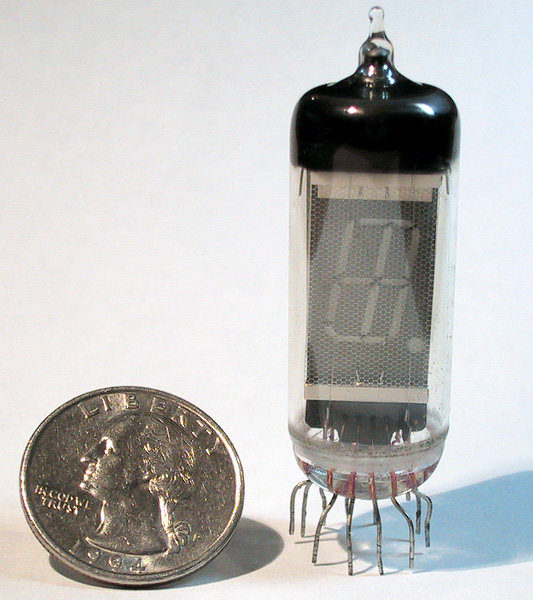

Iseden Itron DG19E VFD tube, at rest.
