RFT Z560M
Written by AnubisTTP on 2010-08-18

Description

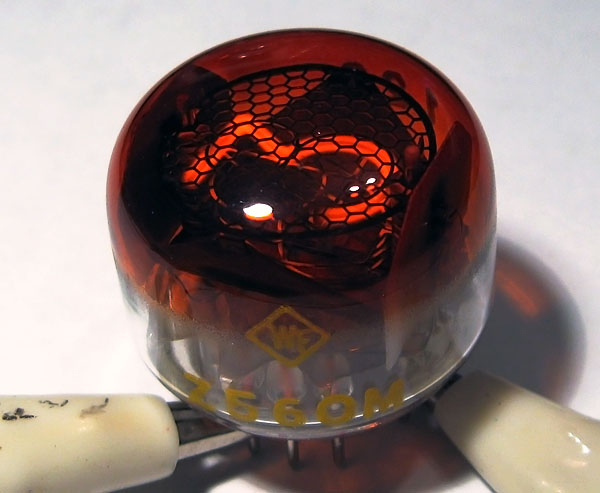

The Z560M is a top-view Nixie display in a compactron style envelope with a 13 pin base. Made by RFT, the Z560M is a shorter, stubbier analog to the Burroughs B5092, which is shown below. The upper surface of the Z560M is coated with a layer of translucent red paint, which increases the contrast of the displayed numbers. Digit height on this Z560M is 15mm, the tube has a diameter of 30mm and a height of 24mm.

Photos


RFT Z560M
