Soviet Anod A106 Dekatron Tube
Written by AnubisTTP on 2011-06-22

Description

The A-106 is the selector companion to the Soviet-made OG-8 counter tube shown above. Like the OG-8, the A-106 is a unidirectional tube with 20 shaped cathodes that angle in the direction the tube is intended to spin. Unlike the OG-8, the A-106 has a large phenolic 13 pin base, and each output cathode is brought out to a separate pin. The A-106 is a fast tube; it's maximum rated counting speed is 100kHz, but it also requires a higher anode voltage than many dekatrons and will not function reliably with most of the spinner circuits available on the Internet.

More

Soviet A106 Dekatron Tube

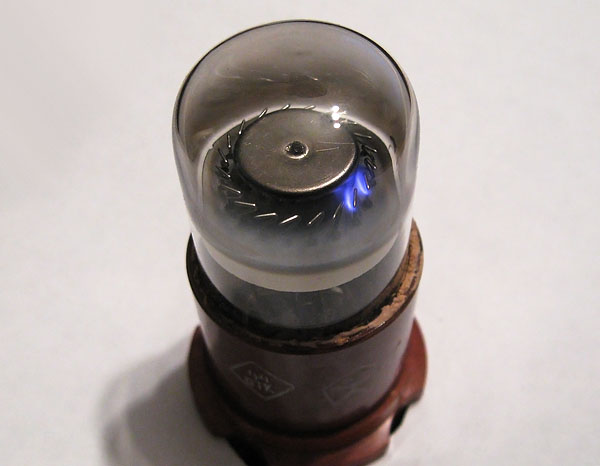

Soviet Anod A106 dekatron tube
