Sperti 473384-2 Vacuum Relay Tube
Written by AnubisTTP on 2006-10-11

Description

This device, which functions as a vacuum relay, consists of a spark gap bridged by a pivoting metal contact mounted on a glass bead. The entire mechanism is sealed in a complex T-shaped vacuum envelope. The underside of the tube is sealed with a flexible metal plate, allowing the contacts to be mechanically opened and closed by pressing the terminal exiting the bottom of the tube.

More

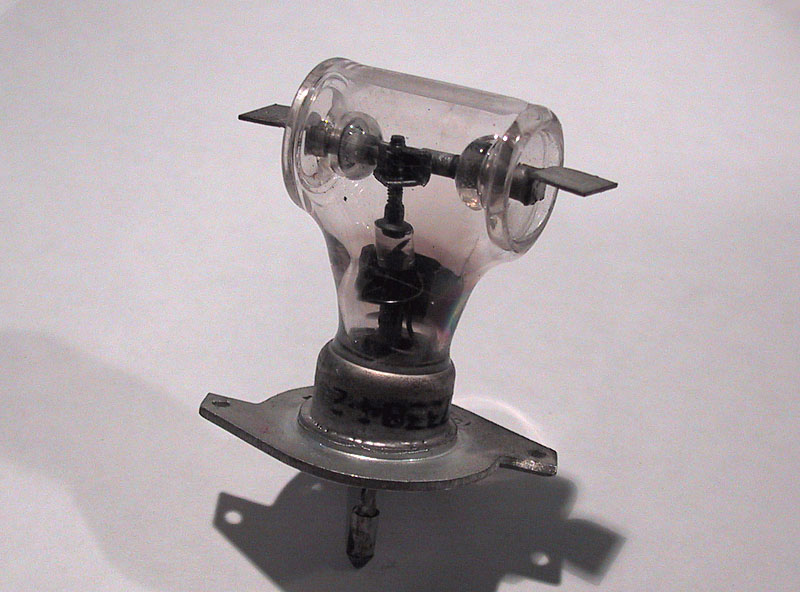

Sperti Vacuum Relay Tube
Sperti vacuum relay tube.
